Roof Ice Melt Systems

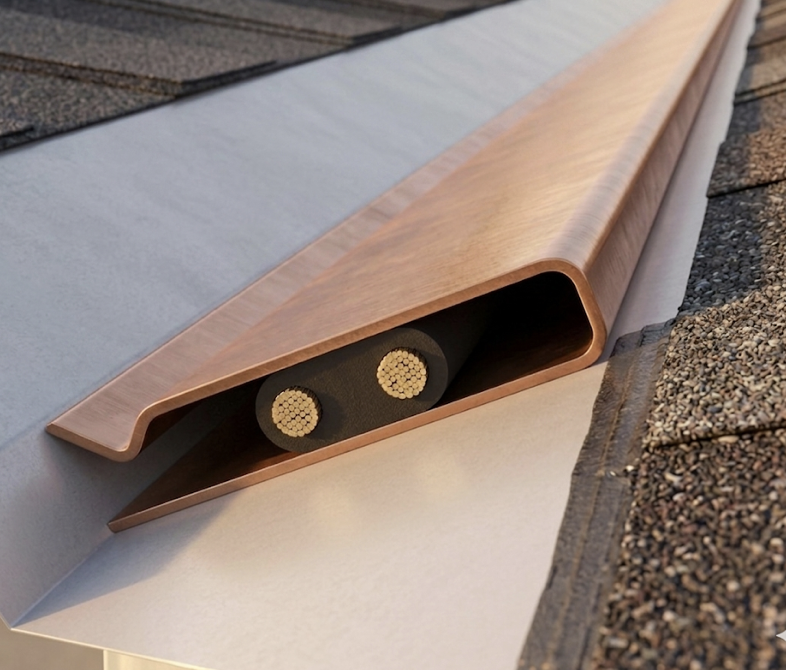

Engineered to prevent ice based hazards before they start. The three-sided raceway compresses heat cable directly against the panel, delivering efficient heat transfer and consistent melting performance.
This design allows our systems to melt using significantly less heat cable than traditional zig-zag heat tape systems.
Let’s break it down:
Energy Efficient
Replacing your heat tape with our system can generate savings of up to 65%.

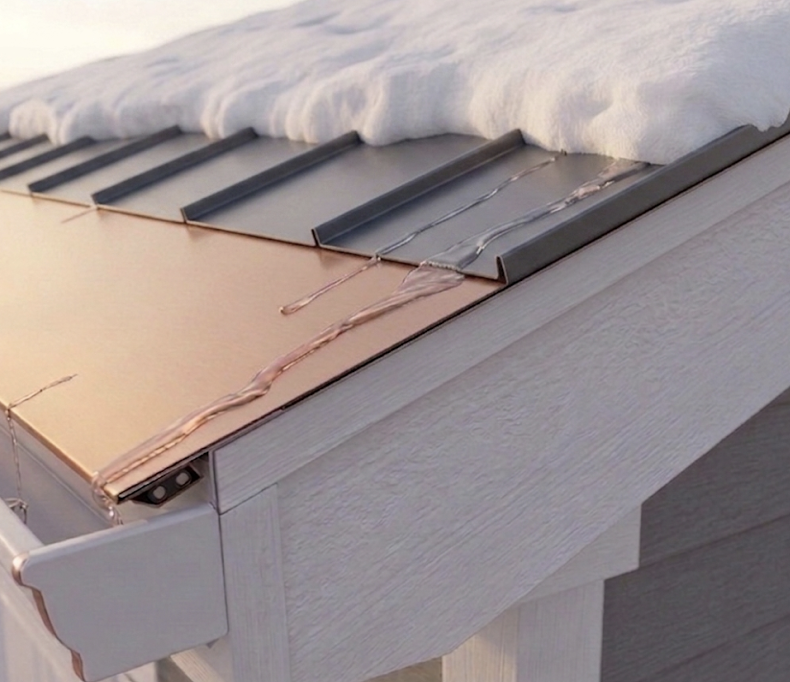

Our attractive panels run parallel to the eave instead of old, perpendicular zig-zag.
This design enables us to typically protect the same area with ⅓ of the cable.
Reduces Risk
Defends against structural damage as well as ‘slip and fall’ hazards.
The patented designs are the only heated ice melt panels to be awarded a UL listing.
Installation is performed with commercial-grade adhesive and does not require roof puncture.
Highly Durable
Cable maintenance can be easily performed without damaging your roof or your panels.
Cable is protected in the panel, decreasing expected maintenance to just once every 10 years.
Heat tape is exposed to the elements, increasing expected maintenance to every 2 years.

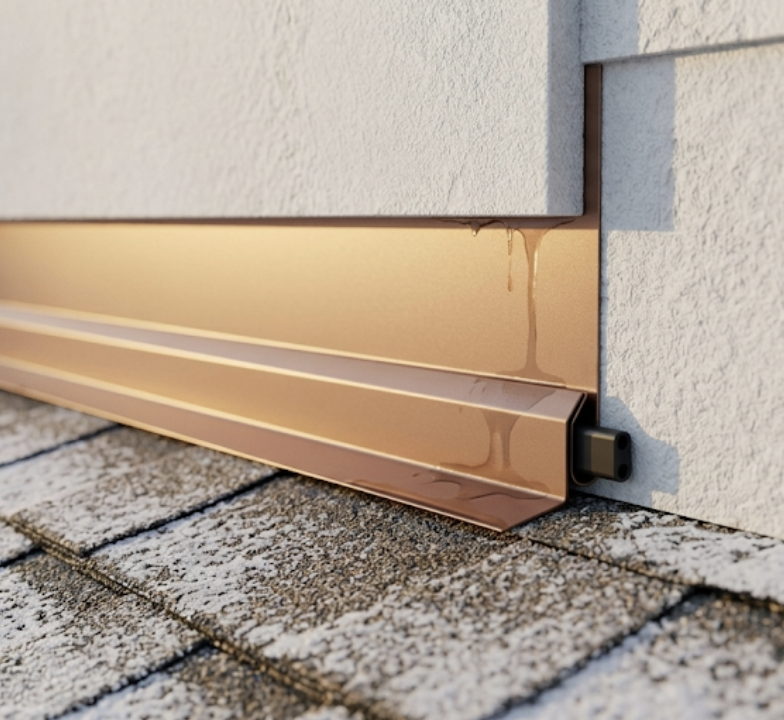

flashing
3”, 6” & 10” widths
Panels can be fabricated flat or with a 4” or 6” vertical bend
Flashing is only available in single cable runs
valley
1.5”, 2” or 3” widths
Single or Double Cable Runs

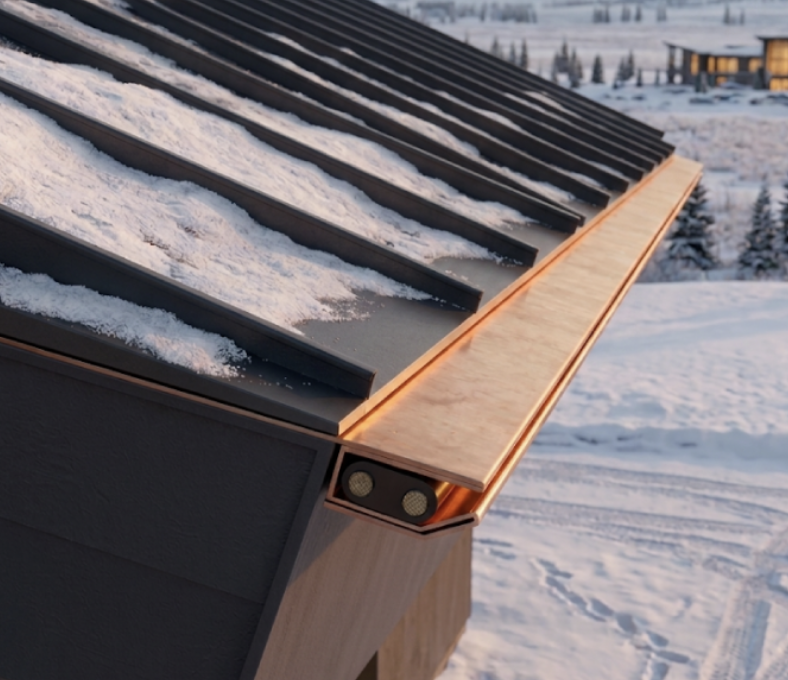

Metal
1x - Single heat cable (10” melt path
2x - Double heat cable (20” melt path)
3x - Triple heat cable (30” melt path)
Rail
Single heat cable run (10” melt path)

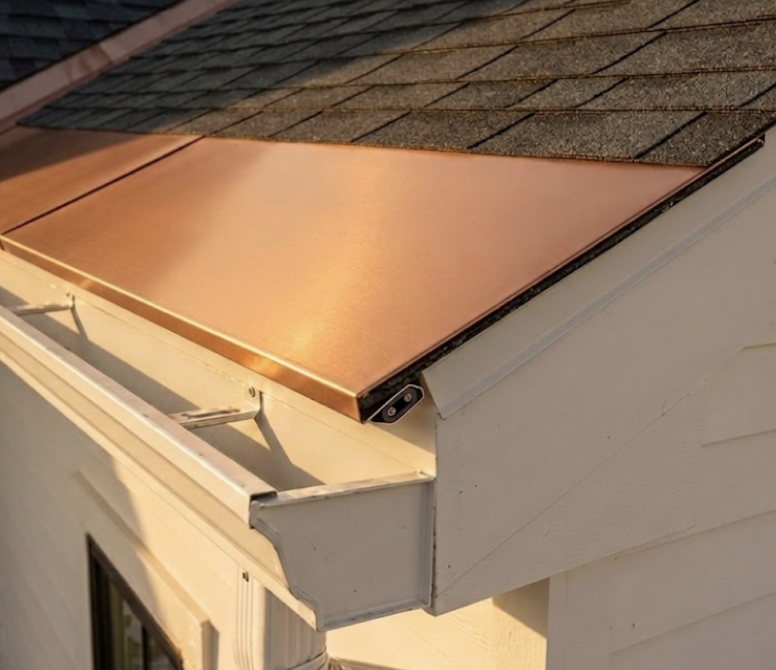

Shingle
1x- Single heat cable (10” melt path)
2x - Double heat cable (20” melt path)
3x - Triple heat cable (30” melt path)

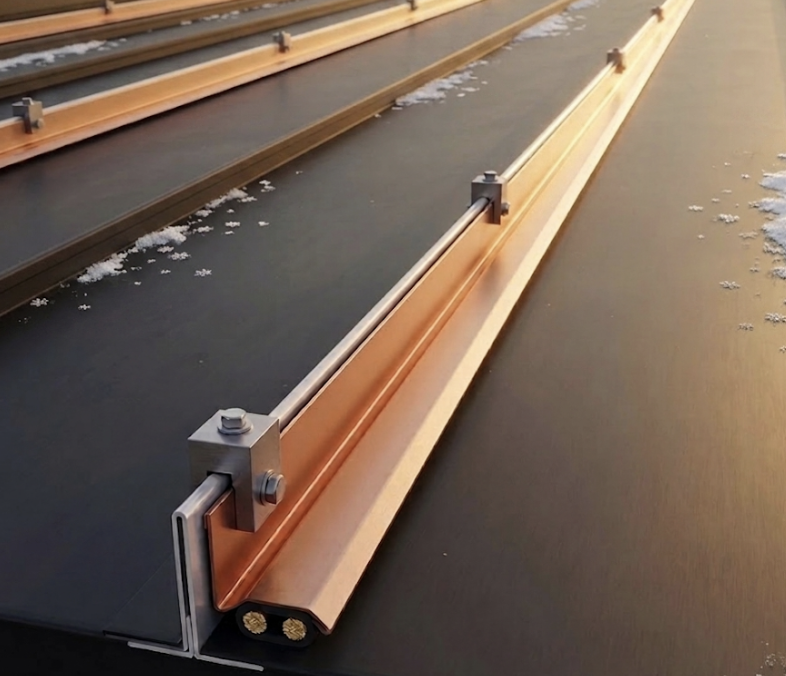

Standing Seam
Available in 5 foot increments
Installed with seam clamps, enabling installers to run as far up the roof as needed.
Single heat cable run (10” melt path)

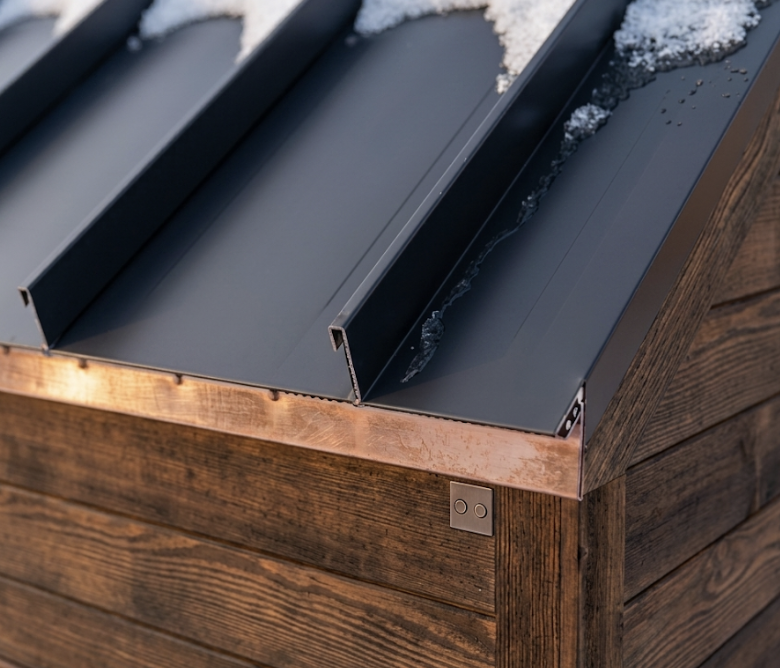

Drip Edge
Single heat cable run (10” melt path)

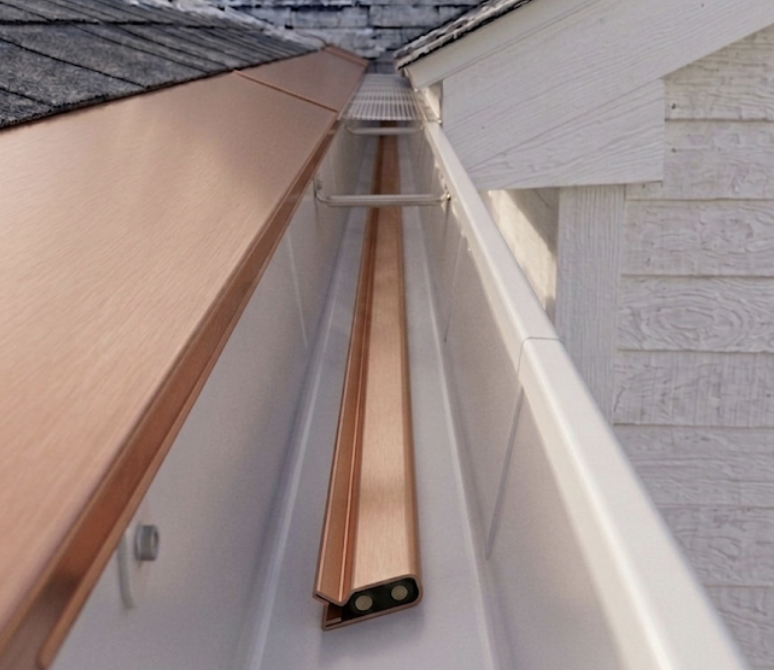

Gutter
Available in 1.5” widths to accommodate all gutter sizes.
